Product Details

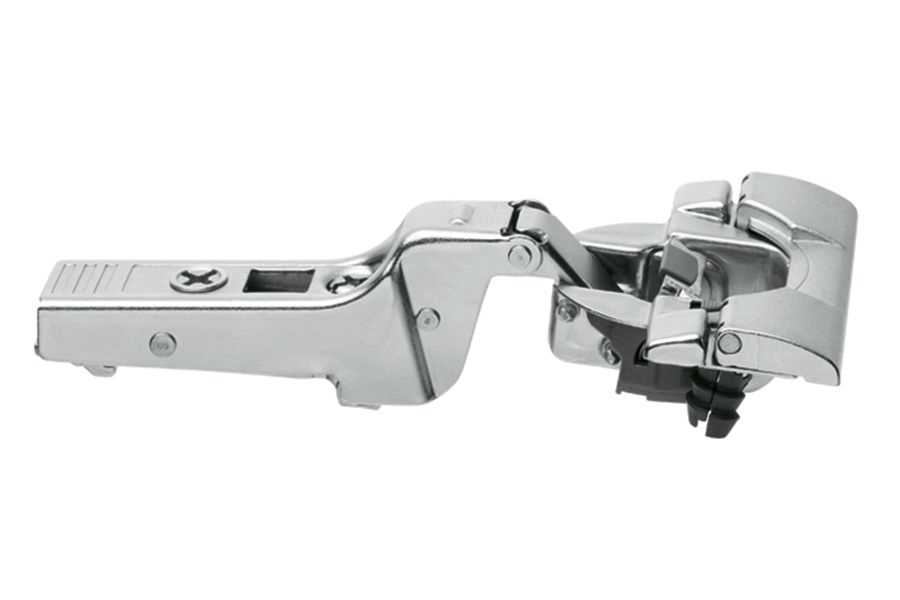

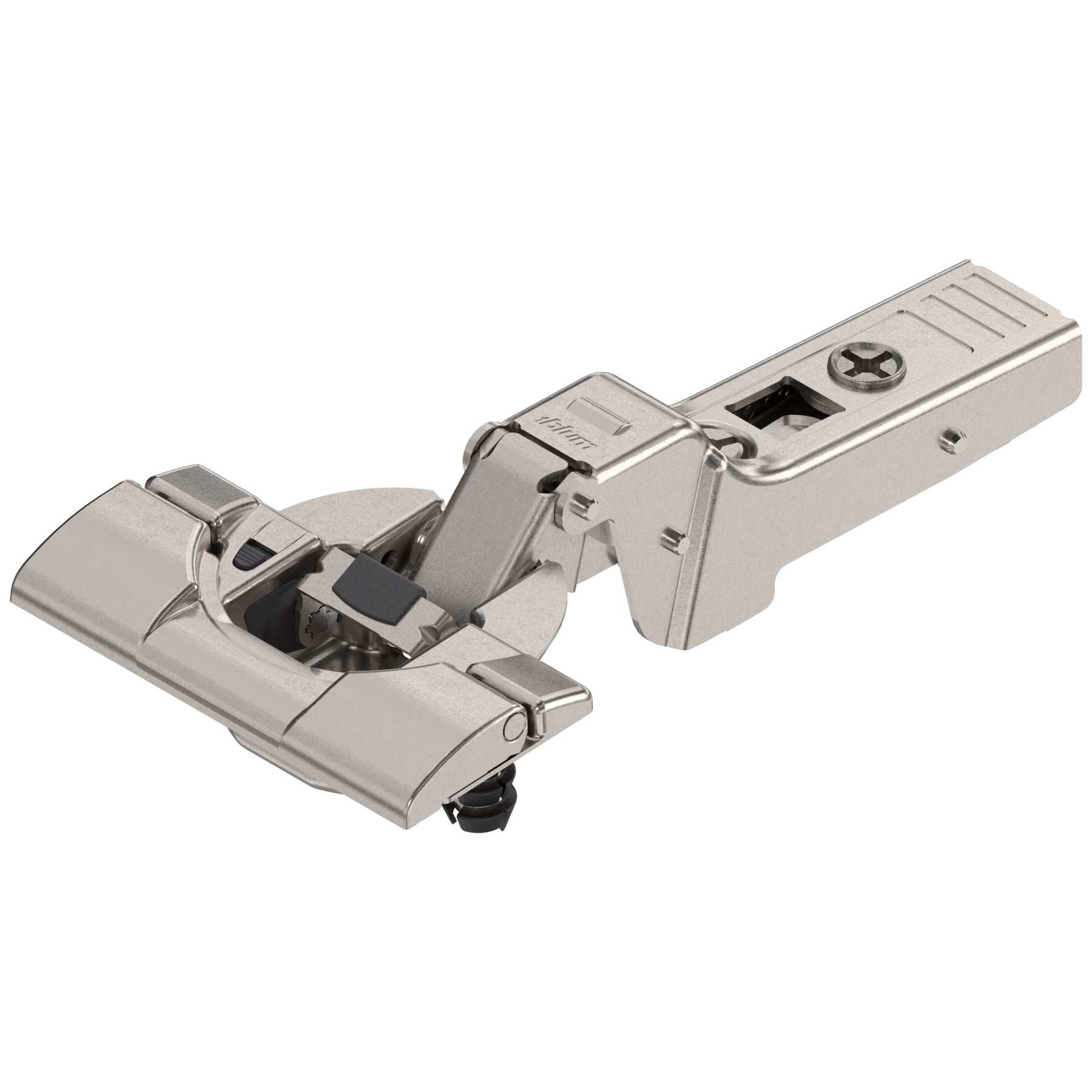

  • CLIP top BLUMOTION thick door hinge 71B9690
  • Opening angle: 95°

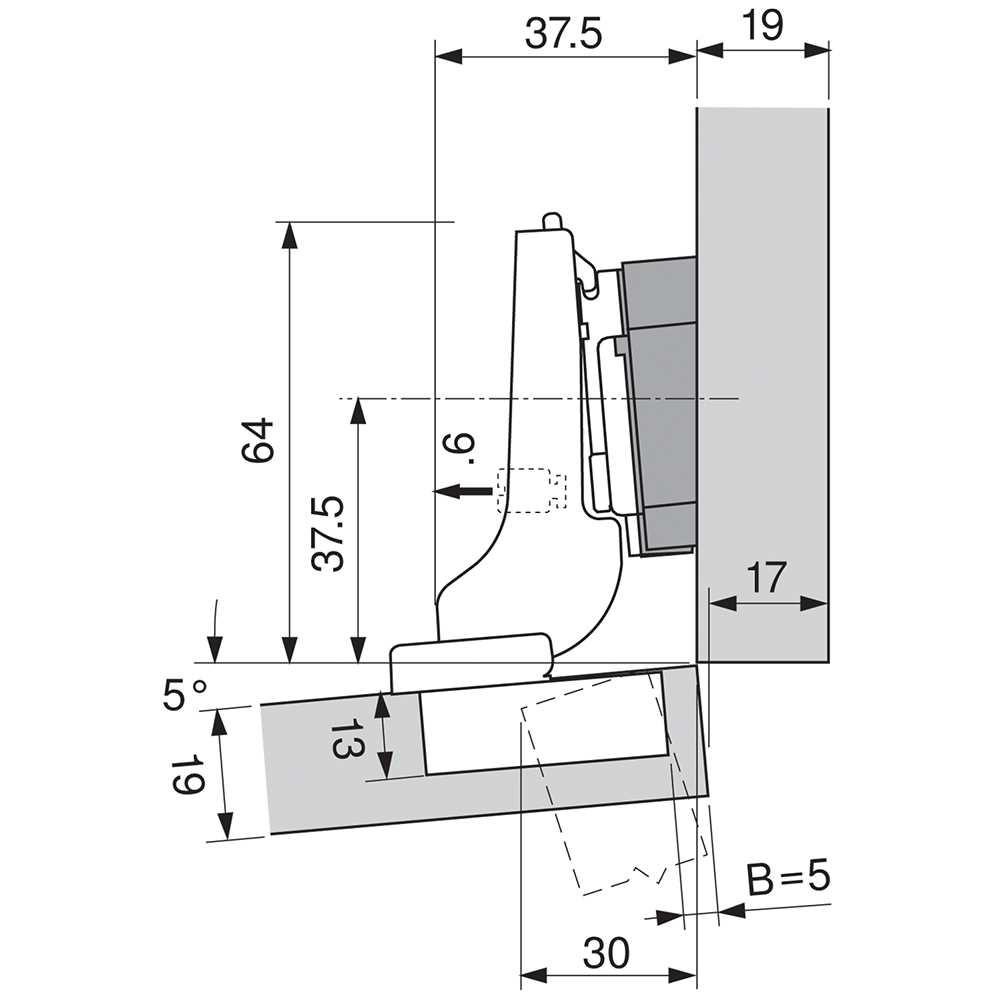

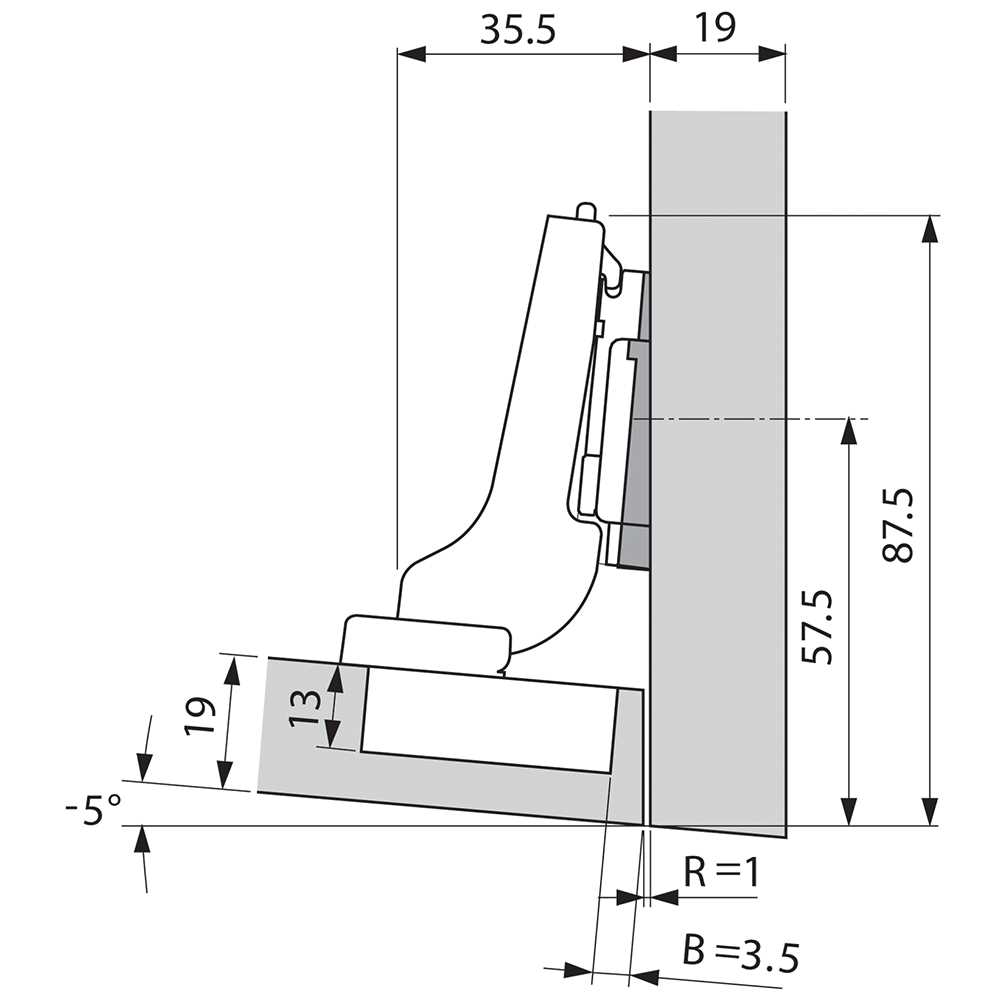

  • Cranking: angled partial overlay
  • BLUMOTION

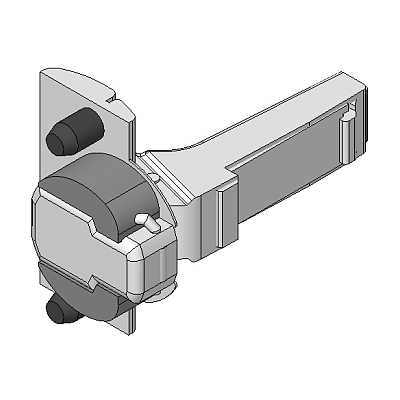

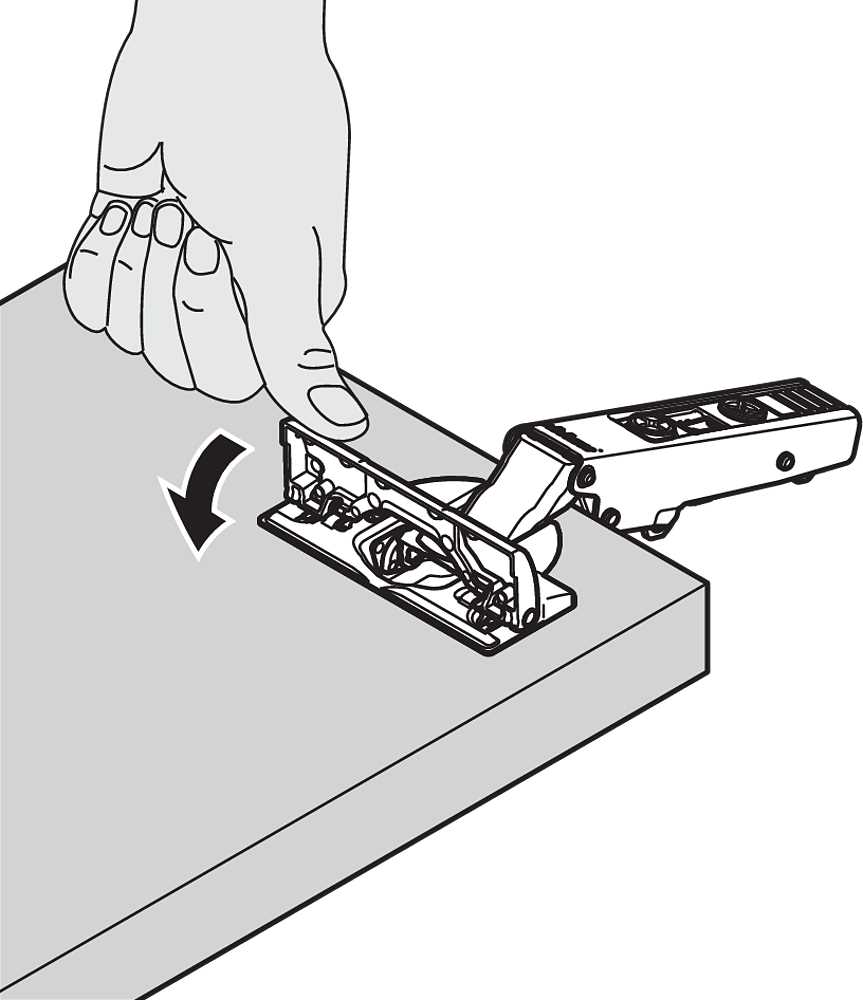

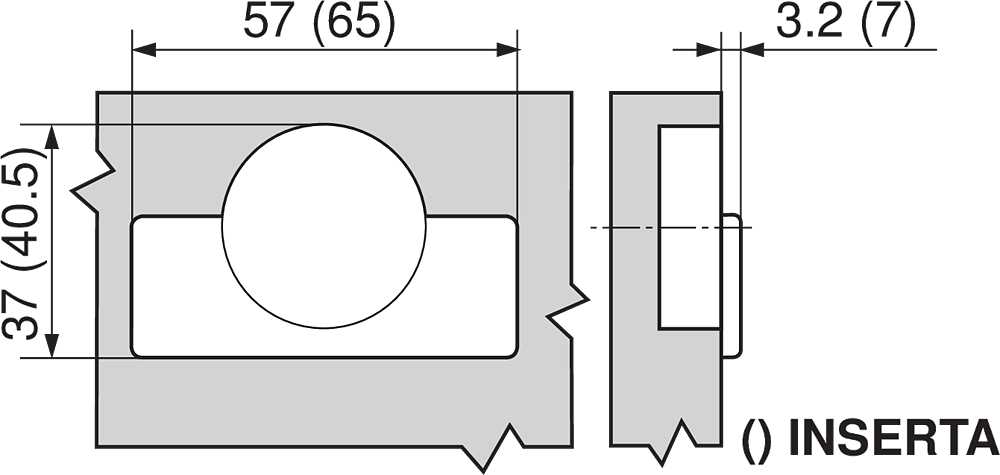

  • Hinge cup assembly: INSERTA
  • Hinge cup material: Steel hinge cup
  • Closing mechanism: with spring

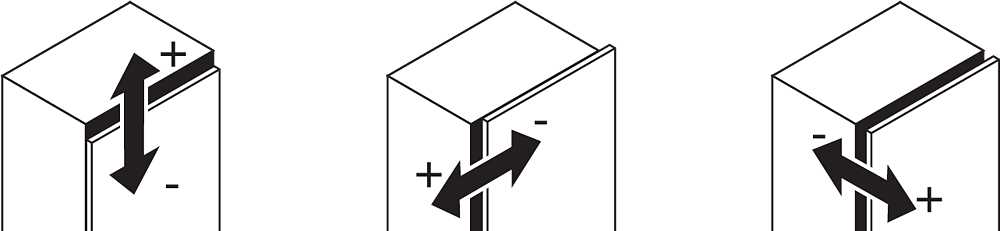

  • Side Adjustment: +/- 2 mm

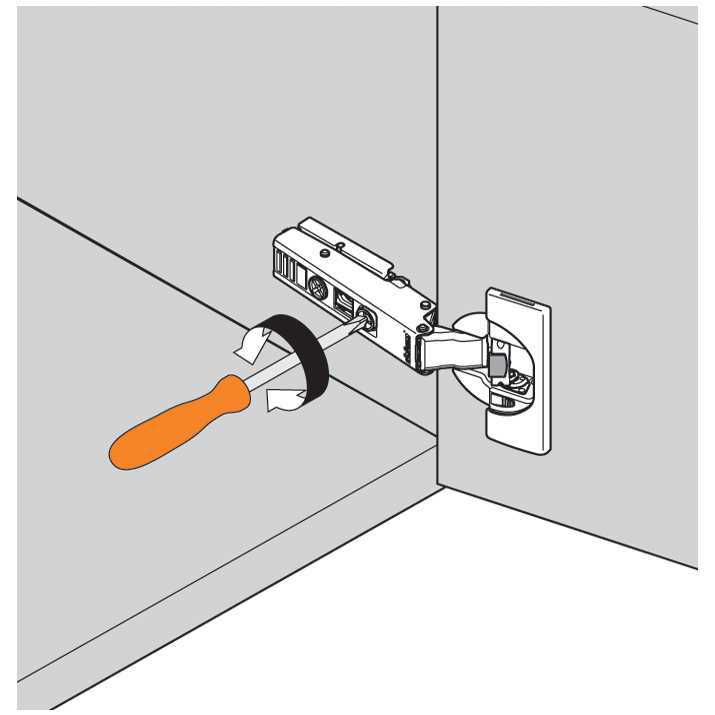

  • Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Brand
Blum
Weight
0.21 lb
Size
1/2" (13mm)
Attachment Type
Inserta
Close Type
Soft-Close
Color/Finish
Nickel - Plated
Fasten Type
Dowel
Hinge Type
Clip Top
Motion Technology
Blumotion
Opening Angle
95°

Product Resources

Care & Maintenance Info

Warranty Info

Website Link
